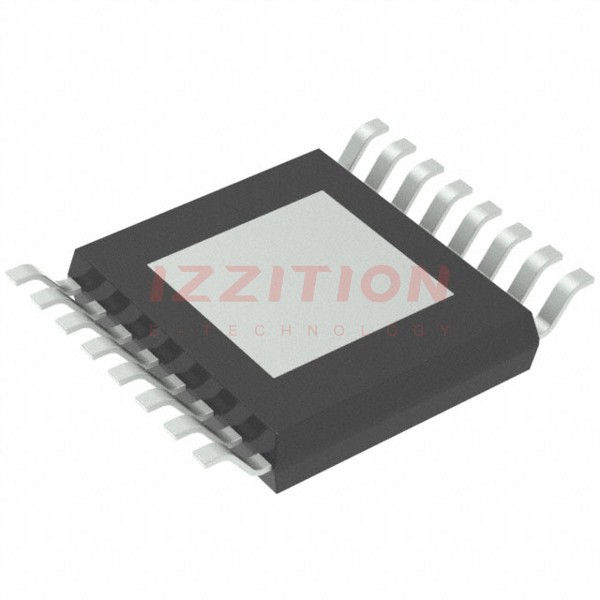

| Part Number | AL1781T16E-13 | AL1783T16E-13 | AL1782T16E-13 | AL1771T16E-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Obsolete |
| Type | Linear | Linear | Linear | Linear |
| Topology | - | - | - | - |
| Internal Switch(s) | No | No | No | No |
| Number of Outputs | 1 | 3 | 2 | 1 |
| Voltage - Supply (Min) | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Supply (Max) | 30V | 60V | 30V | 30V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | 1.5A | 125mA | 1.5A | 1.5A |
| Frequency | - | - | - | 120kHz |
| Dimming | PWM | PWM | PWM | PWM |
| Applications | Lighting | Lighting | Lighting | Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP |
