Please send RFQ , we will respond immediately.

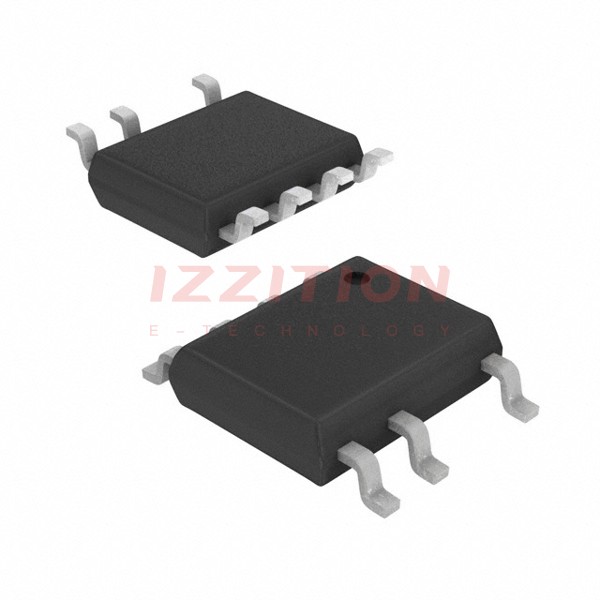

| Part Number | AL1696-30BAS7-13 | AL1697-30BAS7-13 | AL1692-30BAS7-13 | AL1696-30AS7-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck), Step-Up (Boost) | Flyback, Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 8.5V | 8.5V | 8.5V | 8.5V |
| Voltage - Supply (Max) | 18V | 18V | 20V | 18V |
| Voltage - Output | - | 500V | - | - |
| Current - Output / Channel | 3A | 3A | 3A | 3A |
| Frequency | - | - | 4kHz | - |
| Dimming | Triac | Triac | Triac | Triac |
| Applications | Lighting | - | - | Lighting |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO | 7-SO | 7-SO | 7-SO |
