Please send RFQ , we will respond immediately.
| Part Number | AL1676-20BS7-13 | AL1676-20CS7-13 | AL1696-20BS7-13 | AL1678-20BS7-13 | AL1676-10BS7-13 | AL1676-20AS7-13 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 8.5V | 8.5V | 8.5V | 8.5V | 8.5V | 8.5V |
| Voltage - Supply (Max) | 18V | 18V | 18V | 18V | 18V | 18V |
| Voltage - Output | 50V | 600V | - | 15V ~ 35V | 500V | 300V |
| Current - Output / Channel | 2A | 2A | 2A | 2A | 1A | 2A |
| Frequency | - | - | - | 350kHz | - | - |
| Dimming | - | - | Triac | No | - | - |
| Applications | - | - | Lighting | Lighting | - | - |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

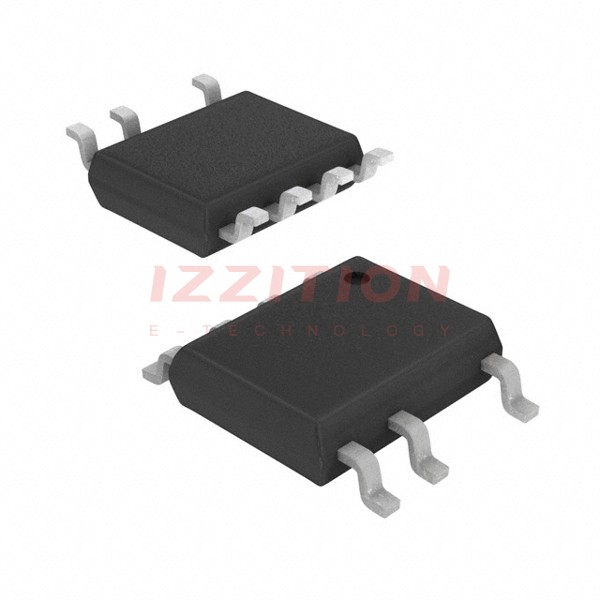

| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO | 7-SO | 7-SO | 7-SO | 7-SO | 7-SO |
