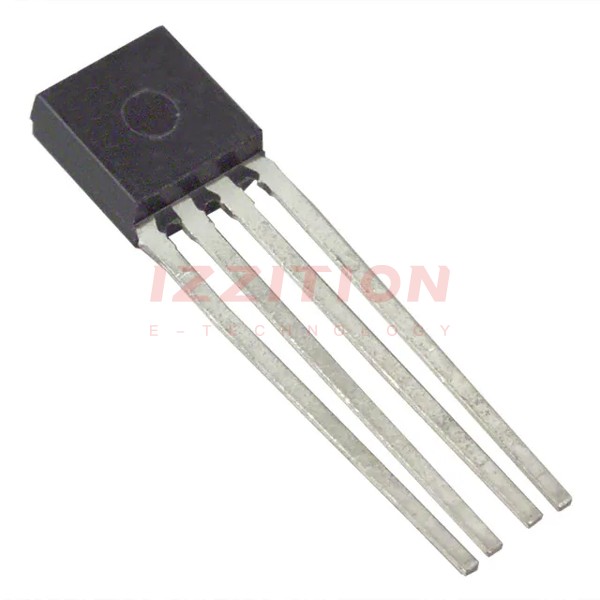

| Part Number | AH284-PL-B | AH288-PL-B | AH285-PL-B | AH286-PL-B | AH289-PL-B | AH284-PG-B |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Discontinued at Digi-Key | Active | Active | Active | Obsolete |
| Motor Type - Stepper | - | - | - | - | - | - |
| Motor Type - AC, DC | - | Brushless DC (BLDC) | - | - | - | Brushless DC (BLDC) |
| Function | - | Driver - Fully Integrated, Control and Power Stage | - | - | - | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | - | Low Side (2) | - | - | - | Low Side (2) |
| Interface | - | On/Off | - | - | - | On/Off |
| Technology | - | Power MOSFET | - | - | - | Power MOSFET |
| Step Resolution | - | - | - | - | - | - |
| Applications | - | Fan Motor Driver | - | - | - | Fan Motor Driver |
| Current - Output | - | 400mA | - | - | - | 500mA |
| Voltage - Supply | - | 3.8V ~ 28V | - | - | - | 3.8V ~ 20V |
| Voltage - Load | - | 3.8V ~ 28V | - | - | - | 3.8V ~ 20V |
| Operating Temperature | - | -40°C ~ 150°C (TJ) | - | - | - | -40°C ~ 150°C (TJ) |
| Mounting Type | - | Through Hole | - | - | - | Through Hole |
| Package / Case | - | 5-SIP | - | - | - | 4-SSIP |
| Supplier Device Package | - | 5-SIP | - | - | - | 4-SIP |
