Diodes Incorporated-AH1903-FA-7 - Magnetic Sensors - Switches (Solid State) Product Specifications and Latest Quotes

Function:	Omnipolar, Unipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±4.8mT Trip, ±3.8mT Release; 4.8mT Trip, 0.9mT Release
Test Condition:	25°C
Voltage - Supply:	1.6V ~ 3.6V
Current - Supply (Max):	8µA
Current - Output (Max):	3mA
Output Type:	Push-Pull
Features:	Programmable Function
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1216-4
Package / Case:	4-UDFN Exposed Pad

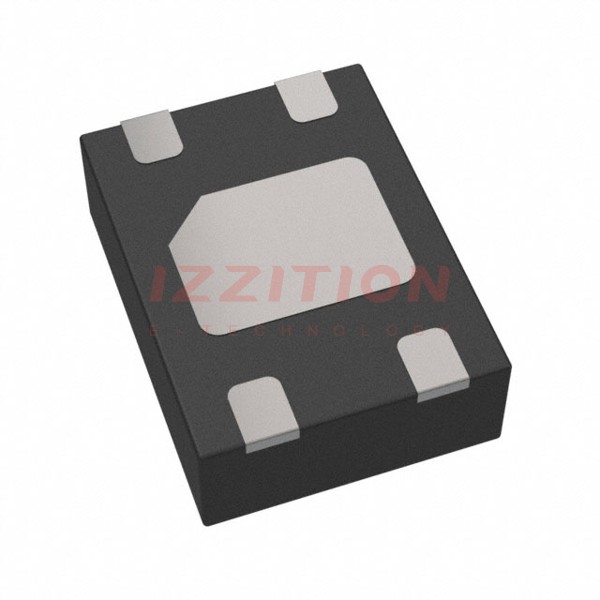

Diodes Incorporated AH1903-FA-7
