Please send RFQ , we will respond immediately.

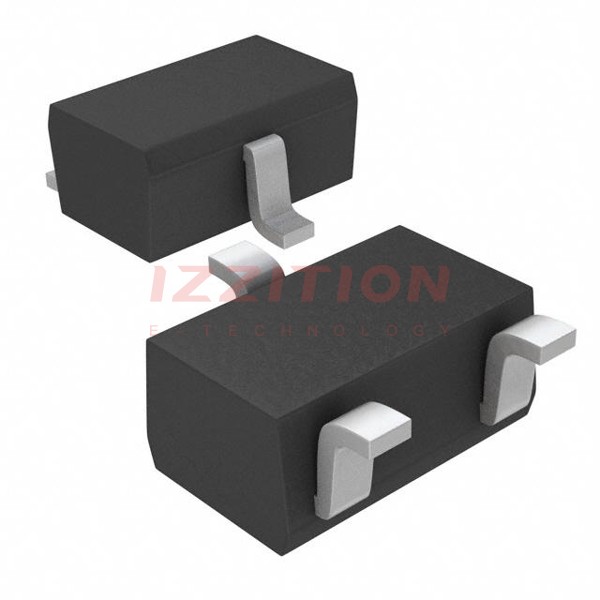

| Part Number | AC847CWQ-7 | AC857CWQ-7 | AC847BWQ-7 | AC847CQ-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Transistor Type | PNP | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 150 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 50mA | 650mV @ 5mA, 100mA | 600mV @ 5mA, 100mA | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 15nA (ICBO) | 20nA (ICBO) | 15nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1mA, 6V | 420 @ 2mA, 5V | 200 @ 2mA, 5V | 600 @ 2mA, 5V |
| Power - Max | 200 mW | 200 mW | 200 mW | 310 mW |
| Frequency - Transition | 140MHz | 100MHz | 300MHz | 300MHz |
| Operating Temperature | 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | UMT3 | SOT-323 | SOT-323 | SOT-23-3 |
