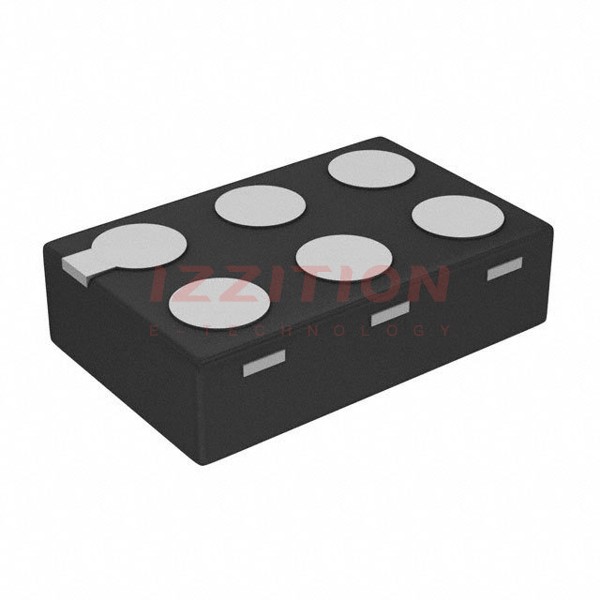

| Part Number | 74LVC2G06FZ4-7 | 74LVC2G04FZ4-7 | 74LVC2G06FW4-7 | 74LVC2G06FX4-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Logic Type | Inverter | - | Inverter | Inverter |
| Number of Circuits | 2 | - | 2 | 2 |
| Number of Inputs | 2 | - | 2 | 2 |
| Features | Open Drain | - | Open Drain | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 40 µA | - | 10 µA | 10 µA |
| Current - Output High, Low | -, 32mA | - | -, 32mA | -, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | - | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.9ns @ 5V, 50pF | - | 2.9ns @ 5V, 50pF | 3.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | X2-DFN1409-6 | - | X2-DFN1010-6 | X2-DFN1409-6 |
| Package / Case | 6-XFDFN | - | 6-XFDFN | 6-XFDFN |
