| Part Number | 74LVC2G00HK3-7 | 74LVC2G02HK3-7 | 74LVC2G08HK3-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Logic Type | NAND Gate | NOR Gate | AND Gate |
| Number of Circuits | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 40 µA | 40 µA | 40 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - |
| Logic Level - High | - | - | 1.3V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 4.2ns @ 5V, 50pF | 5.5ns @ 5V, 50pF | 4.8ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

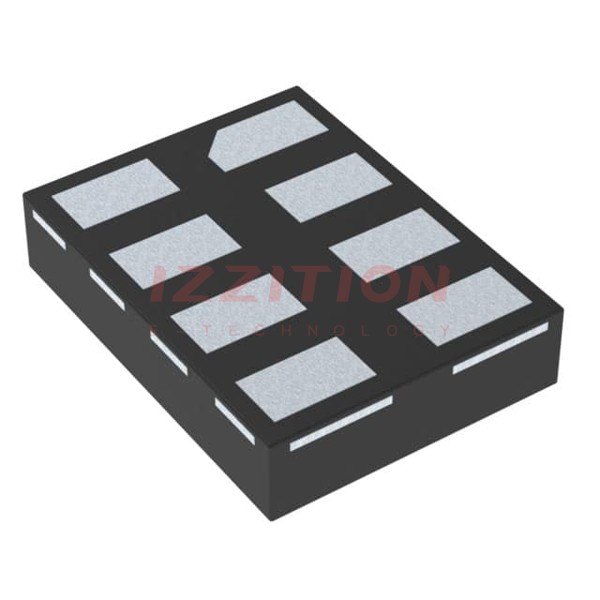

| Supplier Device Package | X2-DFN1410-8 | X2-DFN1410-8 | X2-DFN1410-8 |
| Package / Case | 8-XFDFN | 8-XFDFN | 8-XFDFN |
