Diodes Incorporated-74LVC1G86Z-7 - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	XOR (Exclusive OR)
Number of Circuits:	1
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	200 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.7V ~ 0.8V
Logic Level - High:	1.7V ~ 2V
Max Propagation Delay @ V, Max CL:	5.5ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-553
Package / Case:	SOT-553

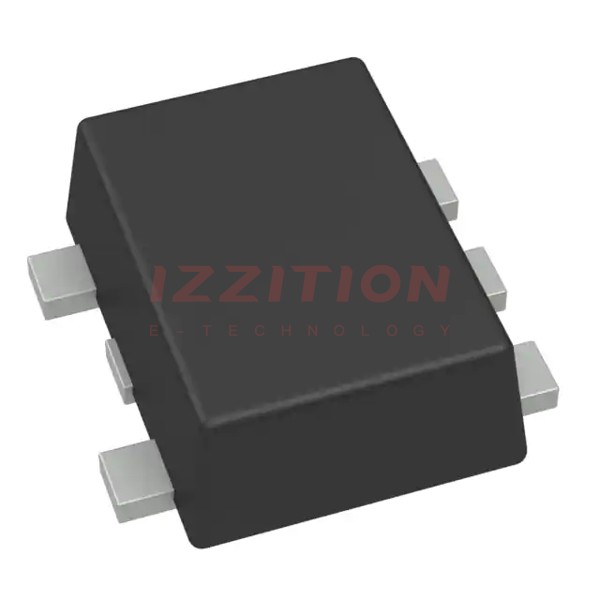

Diodes Incorporated 74LVC1G86Z-7
