Please send RFQ , we will respond immediately.

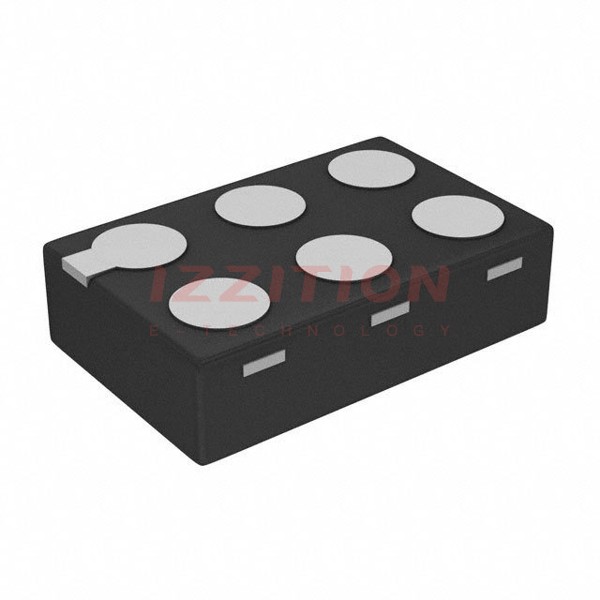

| Part Number | 74LVC1G14FX4-7 | 74LVC1G14FZ4-7 | 74LVC1G04FX4-7 | 74LVC1G14FW4-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Features | Schmitt Trigger | Schmitt Trigger | - | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 200 µA | 200 µA | 200 µA | 200 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.3V ~ 1.45V | 0.1V ~ 0.8V | 0.7V ~ 0.8V | 0.3V ~ 1.45V |
| Logic Level - High | 1.2V ~ 3.33V | 0.95V ~ 3.4V | 1.7V ~ 2V | 1.2V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF | 6.5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X2-DFN1409-6 | X2-DFN1410-6 | X2-DFN1409-6 | X2-DFN1010-6 |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN |
