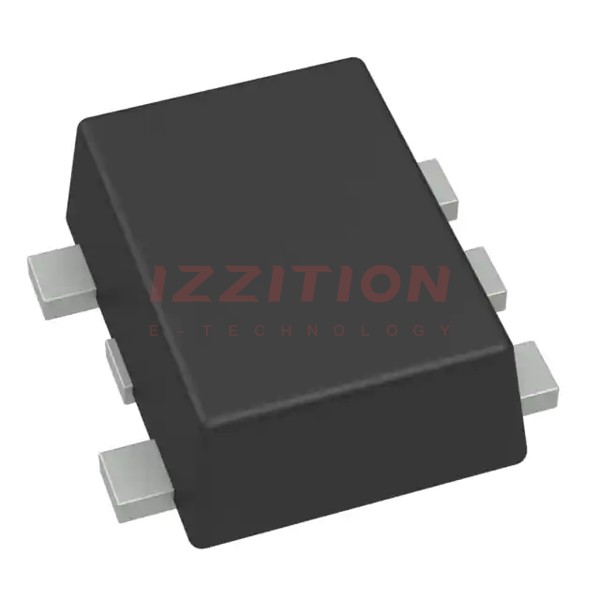

| Part Number | 74LVC1G02Z-7 | 74LVC1G04Z-7 | 74LVC1G08Z-7 | 74LVC1G00Z-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Obsolete |
| Logic Type | NOR Gate | Inverter | - | NAND Gate |
| Number of Circuits | 1 | 1 | - | 1 |
| Number of Inputs | 2 | 1 | - | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 200 µA | 200 µA | - | 200 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | - | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | - | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 1.7ns @ 5V, 50pF | 1.6ns @ 5V, 50pF | - | 1.8ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | SOT-553 | SOT-553 | - | SOT-553 |
| Package / Case | SOT-553 | SOT-553 | - | SOT-553 |
