Please send RFQ , we will respond immediately.

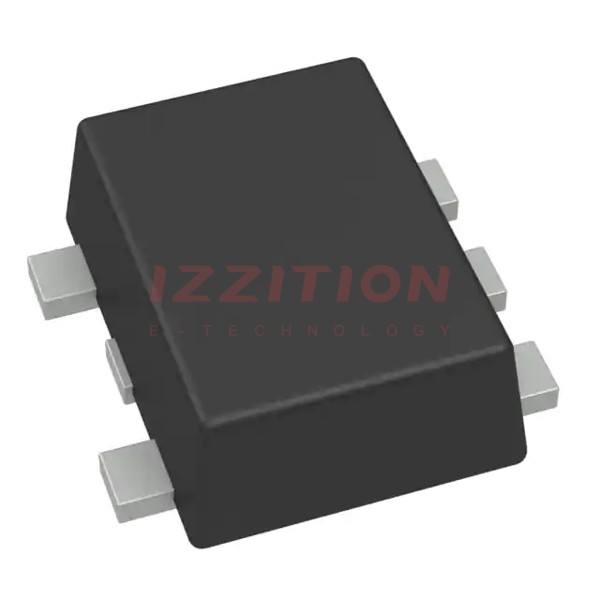

| Part Number | 74LVC1G00Z-7 | 74LVC1G04Z-7 | 74LVC1G02Z-7 | 74LVC1G08Z-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Active | Active |
| Logic Type | NAND Gate | Inverter | NOR Gate | - |
| Number of Circuits | 1 | 1 | 1 | - |
| Number of Inputs | 2 | 1 | 2 | - |
| Features | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - |
| Current - Quiescent (Max) | 200 µA | 200 µA | 200 µA | - |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | - |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | - |
| Max Propagation Delay @ V, Max CL | 1.8ns @ 5V, 50pF | 1.6ns @ 5V, 50pF | 1.7ns @ 5V, 50pF | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 | - |
| Package / Case | SOT-553 | SOT-553 | SOT-553 | - |
