Please send RFQ , we will respond immediately.

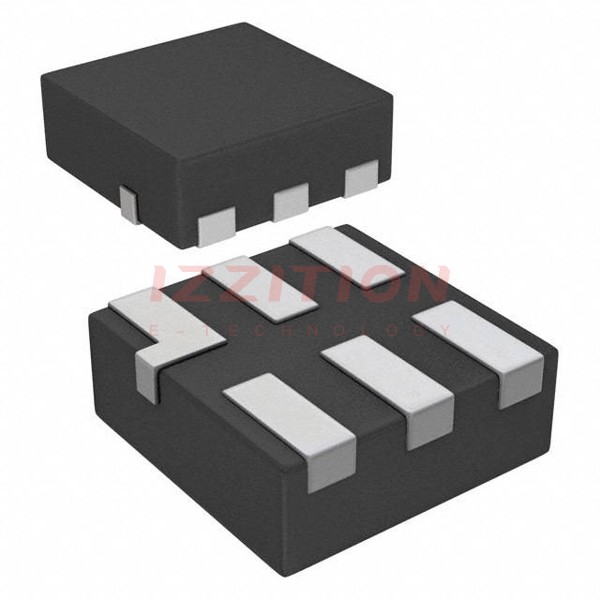

| Part Number | 74AUP1G08FW4-7 | 74AUP1G08FW5-7 | 74AUP1G08FZ4-7 | 74AUP1G08FX4-7 | 74AUP1G09FW4-7 | 74AUP1G00FW4-7 | 74AUP1G02FW4-7 | 74AUP1G04FW4-7 | 74AUP1G06FW4-7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | AND Gate | AND Gate | AND Gate | AND Gate | AND Gate | NAND Gate | NOR Gate | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 |
| Features | - | - | - | - | Open Drain | - | - | - | Open Drain |
| Voltage - Supply | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | -, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | -, 4mA |
| Logic Level - Low | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 6.2ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 12.7ns @ 3.3V, 30pF | 6.5ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | 5.4ns @ 3.3V, 30pF | 10.5ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X2-DFN1010-6 | X1-DFN1010-6 | X2-DFN1410-6 | X2-DFN1409-6 | X2-DFN1010-6 | X2-DFN1010-6 | X2-DFN1010-6 | X2-DFN1010-6 | X2-DFN1010-6 |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN |
