Please send RFQ , we will respond immediately.

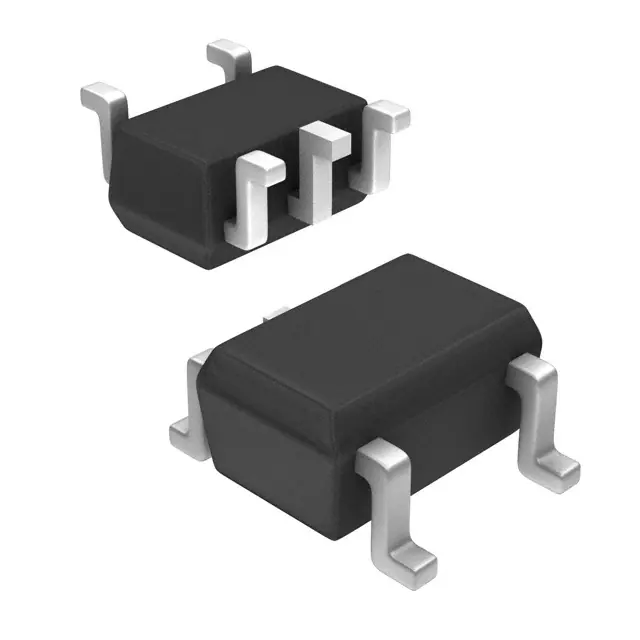

| Part Number | 74AHC1G09SE-7 | 74AHC1G00SE-7 | 74AHC1G02SE-7 | 74AHC1G04SE-7 | 74AHC1G08SE-7 | 74AHC1G09QSE-7 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | AND Gate | NAND Gate | NOR Gate | Inverter | AND Gate | AND Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 1 | 2 | 2 |
| Features | Open Drain | - | - | - | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | -, 4mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-353 | SOT-353 | SOT-353 | SOT-353 | SOT-353 | SOT-353 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
