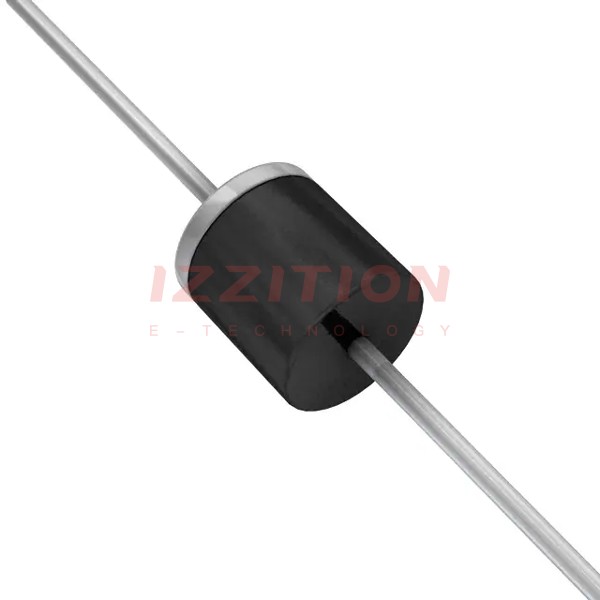

| Part Number | 6A2-B | 6A2-T | 6A8-B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 800 V |
| Current - Average Rectified (Io) | 6A | 6A | 6A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 6 A | 900 mV @ 6 A | 900 mV @ 6 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V | 10 µA @ 200 V | 10 µA @ 800 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | R-6 |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
