Diodes Incorporated-1SS361LPH4-7B - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io):	100mA
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	500 nA @ 80 V
Capacitance @ Vr, F:	3pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	X2-DFN1006-2
Operating Temperature - Junction:	-55°C ~ 150°C

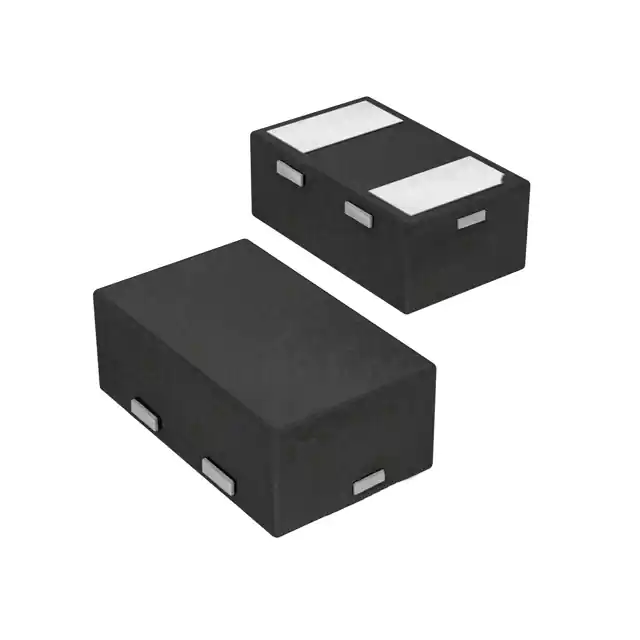

Diodes Incorporated 1SS361LPH4-7B
