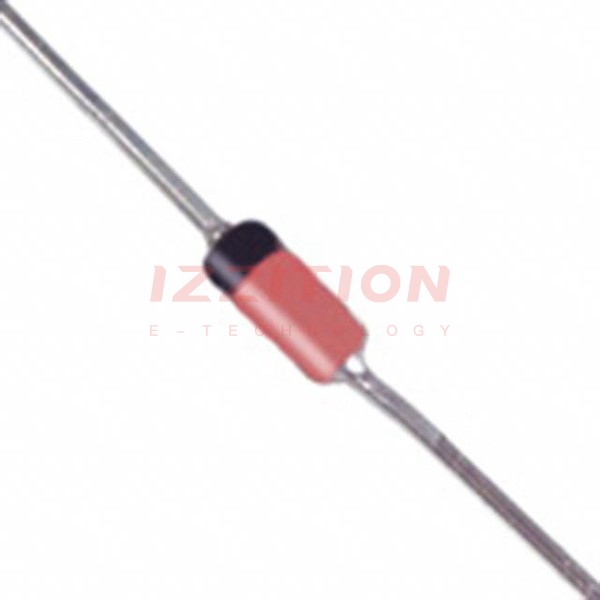

Diodes Incorporated-1N5249B-T - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N5249B-T	1N5249B-TR	1N5249B-TP	1N5244B-T	1N5245B-T	1N5246B-T	1N5247B-T	1N5248B-T
Manufacturer	Diodes Incorporated	Vishay General Semiconductor - Diodes Division	Micro Commercial Co	Vishay General Semiconductor - Diodes Division	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	19 V	19 V	19 V	14 V	15 V	16 V	17 V	18 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	23 Ohms	23 Ohms	23 Ohms	600 Ohms	16 Ohms	17 Ohms	19 Ohms	21 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 14 V	100 nA @ 14 V	100 nA @ 14 V	100 nA @ 10 V	100 nA @ 11 V	100 nA @ 12 V	100 nA @ 13 V	100 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA	1.1 V @ 200 mA
Operating Temperature	-65°C ~ 200°C	175°C	-55°C ~ 150°C	175°C	-65°C ~ 200°C	-65°C ~ 200°C (TJ)	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35	DO-35 (DO-204AH)	DO-35	DO-35 (DO-204AH)	DO-35	DO-35	DO-35	DO-35
