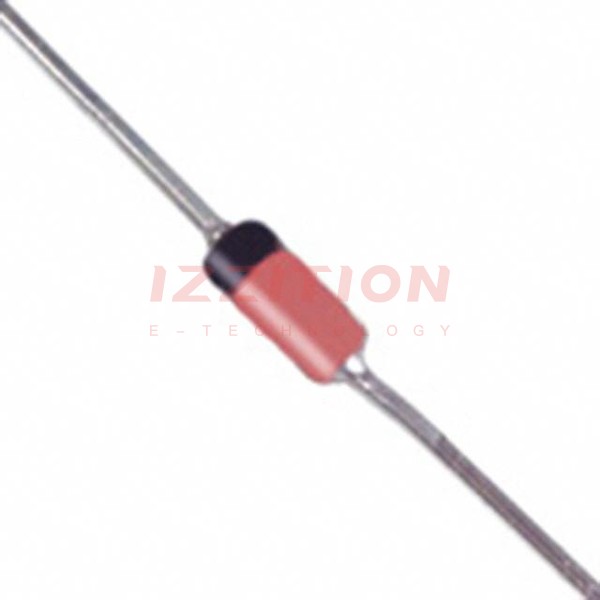

| Part Number | 1N5225B-T | 1N5225B-TR | 1N5227B-T | 1N5229B-T | 1N5228B-T | 1N5225B-TP | 1N5225BT | 1N5226B-T | 1N5221B-T | 1N5222B-T | 1N5223B-T | 1N5224B-T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Vishay General Semiconductor - Diodes Division | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Micro Commercial Co | onsemi | Vishay General Semiconductor - Diodes Division | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 3 V | 3 V | 3.6 V | 4.3 V | 3.9 V | 3 V | 3 V | 3.3 V | 2.4 V | 2.5 V | 2.7 V | 2.8 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 29 Ohms | 29 Ohms | 24 Ohms | 22 Ohms | 23 Ohms | 29 Ohms | 29 Ohms | 1.6 kOhms | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 50 µA @ 1 V | 50 µA @ 1 V | 15 µA @ 1 V | 5 µA @ 1 V | 10 µA @ 1 V | 50 µA @ 1 V | 50 µA @ 1 V | 25 µA @ 1 V | 100 µA @ 1 V | 100 µA @ 1 V | 75 µA @ 1 V | 75 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.2 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 200°C | - | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C | -55°C ~ 150°C | -65°C ~ 200°C | 175°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 | DO-35 (DO-204AH) | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 (DO-204AH) | DO-35 | DO-35 | DO-35 | DO-35 |
