Please send RFQ , we will respond immediately.
| Part Number | 10A07-T | 10A01-T | 10A02-T | 10A04-T | 10A05-T | 10A06-T |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 50 V | 100 V | 400 V | 600 V | 800 V |
| Current - Average Rectified (Io) | 10A | 10A | 10A | 10A | 10A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 A | 1 V @ 10 A | 1 V @ 10 A | 1 V @ 10 A | 1 V @ 10 A | 1 V @ 10 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 400 V | 10 µA @ 600 V | 10 µA @ 800 V |
| Capacitance @ Vr, F | 80pF @ 4V, 1MHz | 150pF @ 4V, 1MHz | 150pF @ 4V, 1MHz | 150pF @ 4V, 1MHz | 80pF @ 4V, 1MHz | 80pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

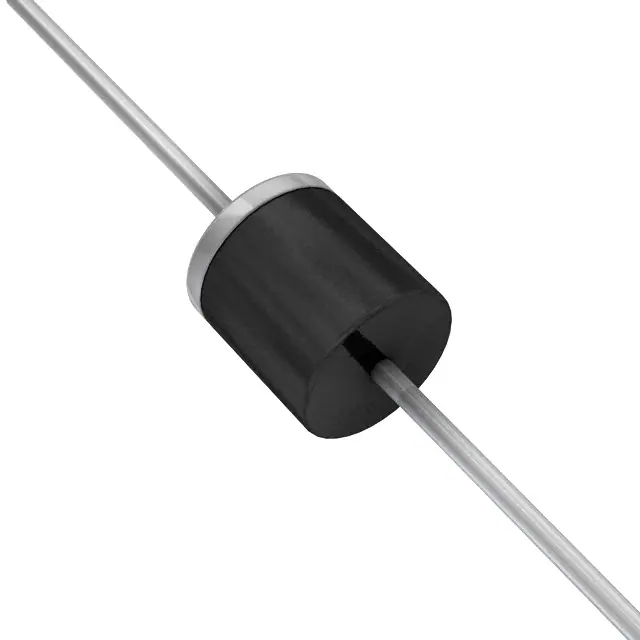

| Package / Case | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | R-6 | R-6 | R-6 | R-6 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
