Diodes Incorporated-1.5KE7.5CA-T-F - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	6.4V
Voltage - Breakdown (Min):	7.13V
Voltage - Clamping (Max) @ Ipp:	11.3V
Current - Peak Pulse (10/1000µs):	132A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-201AA, DO-27, Axial
Supplier Device Package:	DO-201

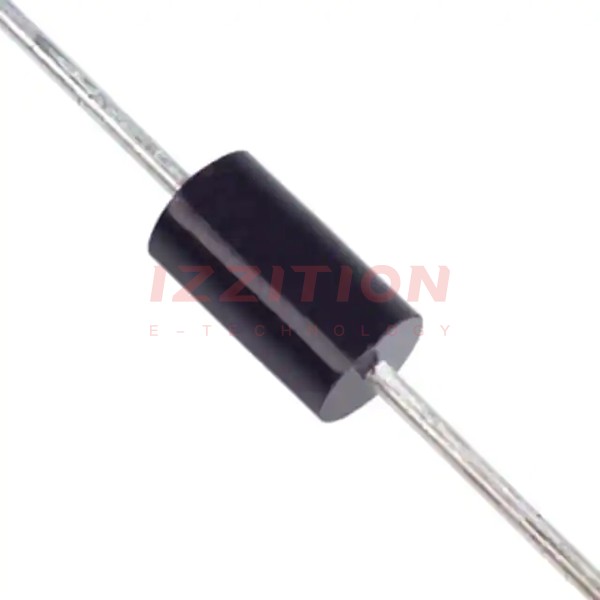

Diodes Incorporated 1.5KE7.5CA-T-F
