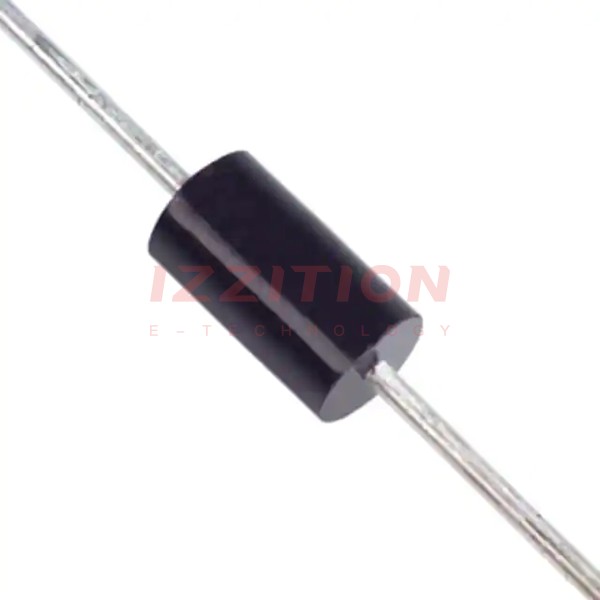

| Part Number | 1.5KE12CA-T | 1.5KE13CA-T | 1.5KE120A-T | 1.5KE120CA-T | 1.5KE12A-T | 1.5KE12CA-B |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 | - | 1 | - |
| Bidirectional Channels | 1 | 1 | - | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 10.2V | 11.1V | 102V | 102V | 10.2V | 10.2V |
| Voltage - Breakdown (Min) | 11.4V | 12.4V | 114V | 114V | 11.4V | 11.4V |
| Voltage - Clamping (Max) @ Ipp | 16.7V | 18.2V | 165V | 165V | 16.7V | 16.7V |
| Current - Peak Pulse (10/1000µs) | 90A | 82A | 9.1A | 9.1A | 90A | 91A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
