BWVN00322515470M00
  • Share:

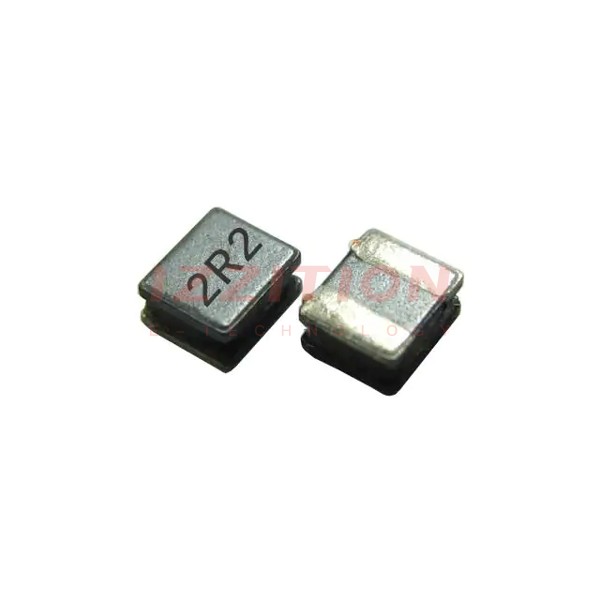

Chilisin Electronics BWVN00322515470M00

Manufacturer No:
BWVN00322515470M00
Manufacturer:
Chilisin Electronics
Package:
Tape & Reel (TR)
Datasheet:
BWVN00322515470M00 Datasheet
ECAD Model:
-
Description:
INDUCTOR POWER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:47 µH
Tolerance:±20%
Current Rating (Amps):240 mA
Current - Saturation (Isat):280mA
Shielding:Unshielded
DC Resistance (DCR):1.48Ohm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.067" (1.70mm)
0 Remaining View Similar

In Stock

$0.14
4,901

Please send RFQ , we will respond immediately.

Similar Products

Part Number BWVN00322515470M00 BWVN00322515470T00
Manufacturer Chilisin Electronics Chilisin Electronics
Product Status Active Active
Type Wirewound Wirewound
Material - Core - -
Inductance 47 µH 47 µH
Tolerance ±20% ±30%
Current Rating (Amps) 240 mA 240 mA
Current - Saturation (Isat) 280mA 280mA
Shielding Unshielded Unshielded
DC Resistance (DCR) 1.48Ohm 1.48Ohm
Q @ Freq - -
Frequency - Self Resonant - -
Ratings - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 1 MHz 1 MHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case 1210 (3225 Metric) 1210 (3225 Metric)
Supplier Device Package 1210 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.067" (1.70mm) 0.067" (1.70mm)
