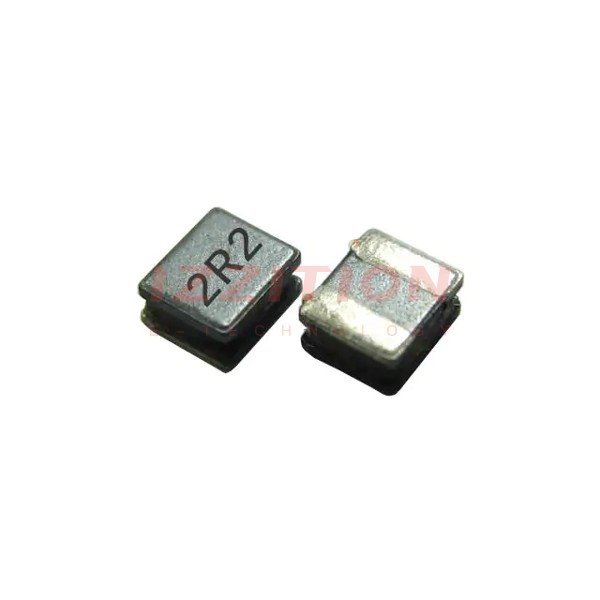

| Part Number | BWVN003225153R3T00 | BWVN003225153R3M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±30% | ±20% |
| Current Rating (Amps) | 1.2 A | 1.2 A |
| Current - Saturation (Isat) | 1.25A | 1.25A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm | 120mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) |
