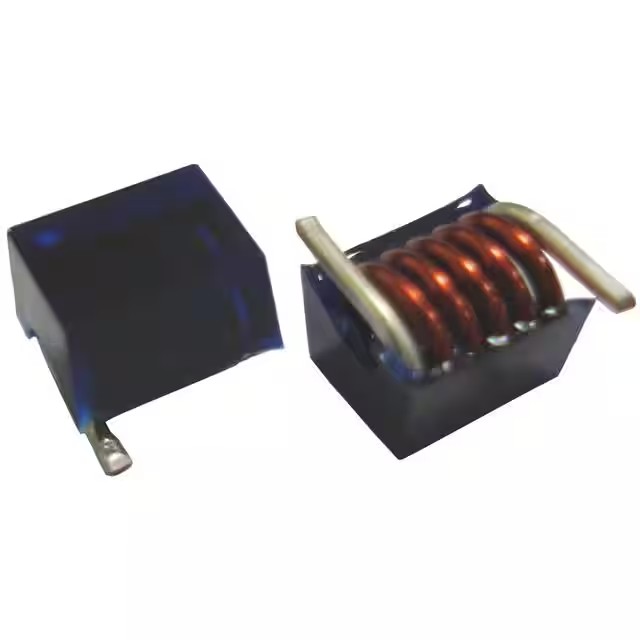

| Part Number | BWSM0050644233NG00 | BWSM0050644239NG00 | BWSM0050644233NJ00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | Air | Air | Air |
| Inductance | 33 nH | 39 nH | 33 nH |
| Tolerance | ±2% | ±2% | ±5% |
| Current Rating (Amps) | 3 A | 3 A | 3 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.8mOhm Max | 4.8mOhm Max | 4.8mOhm Max |
| Q @ Freq | 100 @ 150MHz | 100 @ 150MHz | 100 @ 150MHz |
| Frequency - Self Resonant | 1.5GHz | 1.1GHz | 1.5GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz | 150 MHz | 150 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.194" L x 0.250" W (4.94mm x 6.34mm) | 0.194" L x 0.250" W (4.94mm x 6.34mm) | 0.194" L x 0.250" W (4.94mm x 6.34mm) |
| Height - Seated (Max) | 0.165" (4.18mm) | 0.165" (4.18mm) | 0.165" (4.18mm) |
