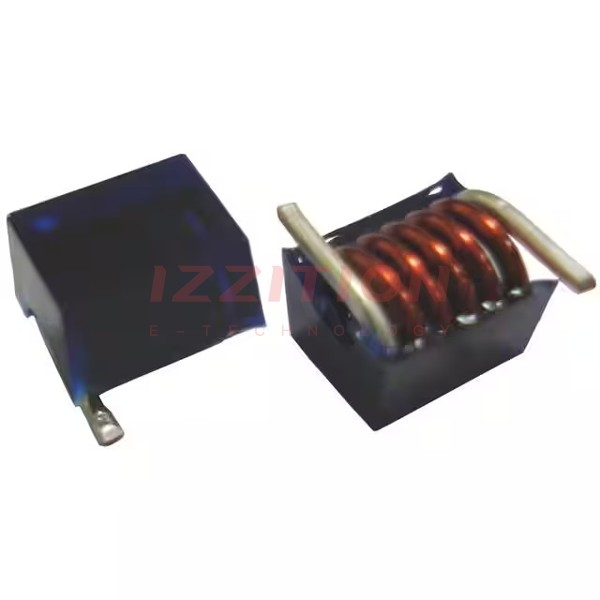

| Part Number | BWSM0050644227NJ00 | BWSM0050644247NJ00 | BWSM0050644222NJ00 | BWSM0050644227NG00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Air | Air | Air | Air |
| Inductance | 27 nH | 47 nH | 22 nH | 27 nH |
| Tolerance | ±5% | ±5% | ±5% | ±2% |
| Current Rating (Amps) | 3.5 A | 3 A | 3 A | 3.5 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4mOhm Max | 5.8mOhm Max | 4.2mOhm Max | 4mOhm Max |
| Q @ Freq | 100 @ 150MHz | 100 @ 150MHz | 100 @ 150MHz | 100 @ 150MHz |
| Frequency - Self Resonant | 1.7GHz | 1.1GHz | 1.9GHz | 1.7GHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz | 150 MHz | 150 MHz | 150 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.194" L x 0.250" W (4.94mm x 6.34mm) | 0.194" L x 0.250" W (4.94mm x 6.34mm) | 0.194" L x 0.250" W (4.94mm x 6.34mm) | 0.194" L x 0.250" W (4.94mm x 6.34mm) |
| Height - Seated (Max) | 0.165" (4.18mm) | 0.165" (4.18mm) | 0.165" (4.18mm) | 0.165" (4.18mm) |
