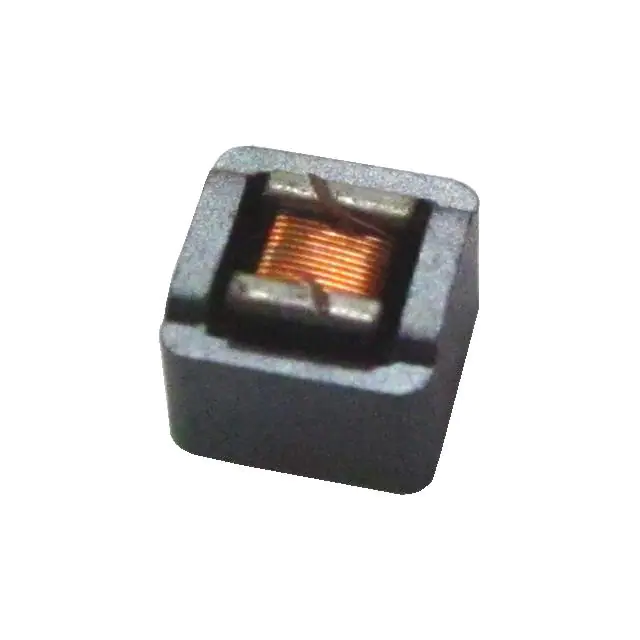

| Part Number | BWPS003838291R8K00 | BWPS003838291R8M00 | BWPS003838296R8K00 | BWPS003838291R0K00 | BWPS003838291R5K00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.8 µH | 1.8 µH | 6.8 µH | 1 µH | 1.5 µH |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2.1 A | 2.1 A | 900 mA | 3 A | 2.8 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 90mOhm Max | 90mOhm Max | 580mOhm Max | 50mOhm Max | 80mOhm Max |
| Q @ Freq | 28 @ 1MHz | 28 @ 1MHz | 30 @ 1MHz | 26 @ 1MHz | 26 @ 1MHz |
| Frequency - Self Resonant | 225MHz | 225MHz | 110MHz | 344MHz | 260MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Height - Seated (Max) | 0.116" (2.94mm) | 0.116" (2.94mm) | 0.116" (2.94mm) | 0.116" (2.94mm) | 0.116" (2.94mm) |
