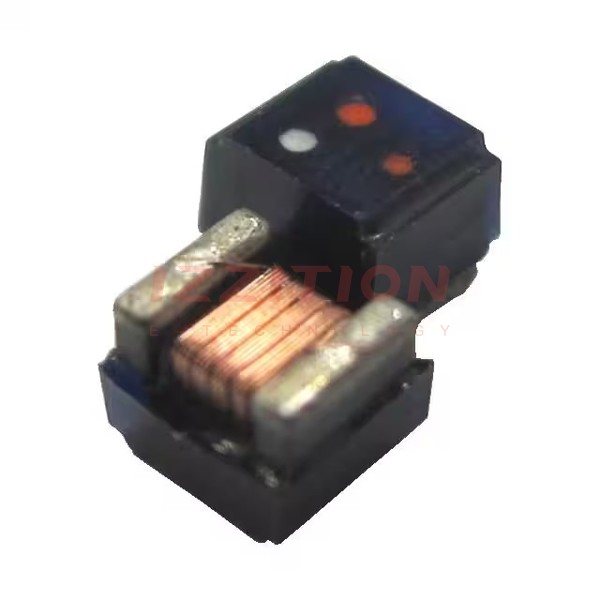

| Part Number | BWNL002925225R6K00 | BWNL002925225R6J00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±10% | ±5% |
| Current Rating (Amps) | 640 mA | 640 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.5Ohm Max | 2.5Ohm Max |
| Q @ Freq | 20 @ 7.96MHz | 20 @ 7.96MHz |
| Frequency - Self Resonant | 42MHz | 42MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.115" L x 0.098" W (2.92mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) |
