BWMR003027126R8M00
  • Share:

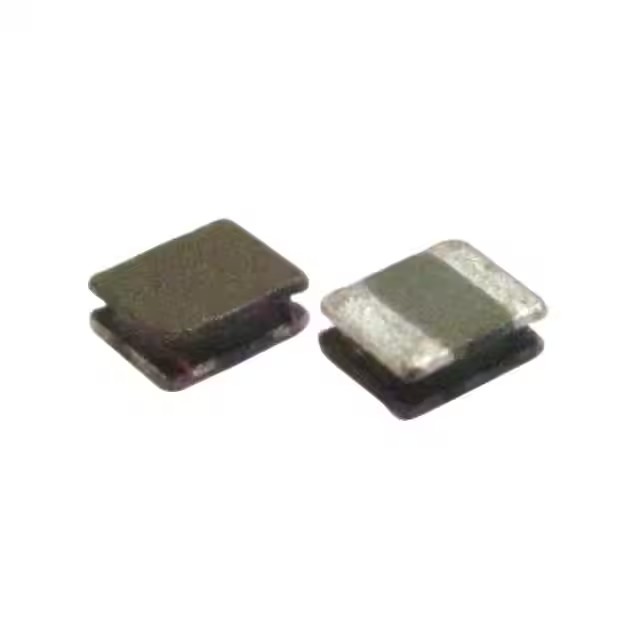

Chilisin Electronics BWMR003027126R8M00

Manufacturer No:
BWMR003027126R8M00
Manufacturer:
Chilisin Electronics
Package:
Tape & Reel (TR)
Datasheet:
BWMR003027126R8M00 Datasheet
ECAD Model:
-
Description:
INDUCTOR POWER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Metal
Inductance:6.8 µH
Tolerance:±20%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):1.8A
Shielding:Shielded
DC Resistance (DCR):318mOhm Max
Q @ Freq:-
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.106" W (3.00mm x 2.70mm)
Height - Seated (Max):0.047" (1.20mm)
0 Remaining View Similar

In Stock

$0.15
5,389

Please send RFQ , we will respond immediately.

Similar Products

Part Number BWMR003027126R8M00 BWMR003027126R8T00
Manufacturer Chilisin Electronics Chilisin Electronics
Product Status Active Active
Type Drum Core, Wirewound Drum Core, Wirewound
Material - Core Metal Metal
Inductance 6.8 µH 6.8 µH
Tolerance ±20% ±30%
Current Rating (Amps) 1.1 A 1.1 A
Current - Saturation (Isat) 1.8A 1.8A
Shielding Shielded Shielded
DC Resistance (DCR) 318mOhm Max 318mOhm Max
Q @ Freq - -
Frequency - Self Resonant 16MHz 16MHz
Ratings - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 1 MHz 1 MHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard
Supplier Device Package - -
Size / Dimension 0.118" L x 0.106" W (3.00mm x 2.70mm) 0.118" L x 0.106" W (3.00mm x 2.70mm)
Height - Seated (Max) 0.047" (1.20mm) 0.047" (1.20mm)
