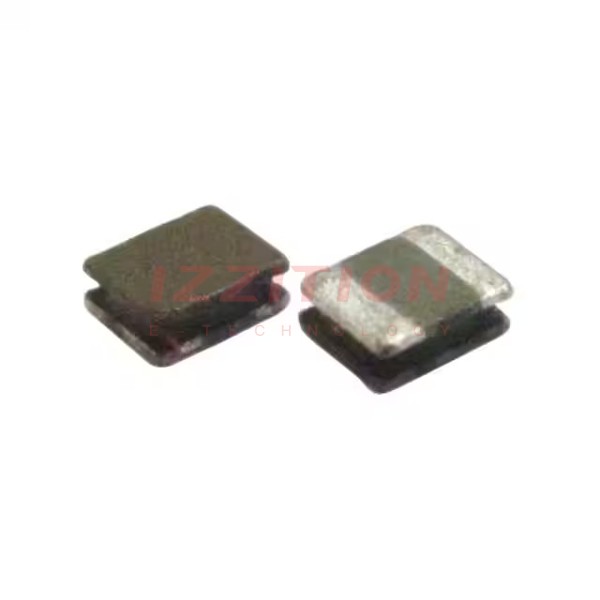

| Part Number | BWMR003027121R0T00 | BWMR00302712100T00 | BWMR003027121R0M00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal |
| Inductance | 1 µH | 10 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±20% |
| Current Rating (Amps) | 2.7 A | 1 A | 2.7 A |
| Current - Saturation (Isat) | 4.8A | 1.5A | 4.8A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 64mOhm Max | 444mOhm Max | 64mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 52MHz | 12MHz | 52MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.118" L x 0.106" W (3.00mm x 2.70mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
