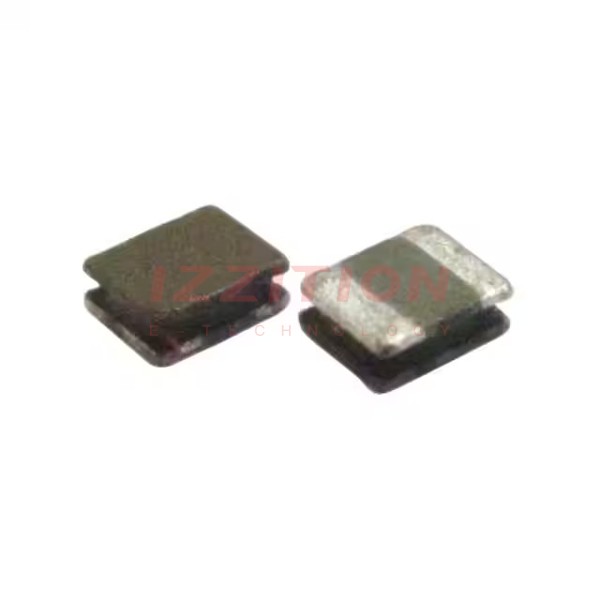

| Part Number | BWMR002520122R2T00 | BWMR002520122R2M00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±30% | ±20% |
| Current Rating (Amps) | 2.2 A | 2.2 A |
| Current - Saturation (Isat) | 2.7A | 2.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 92mOhm Max | 92mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 32MHz | 32MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
