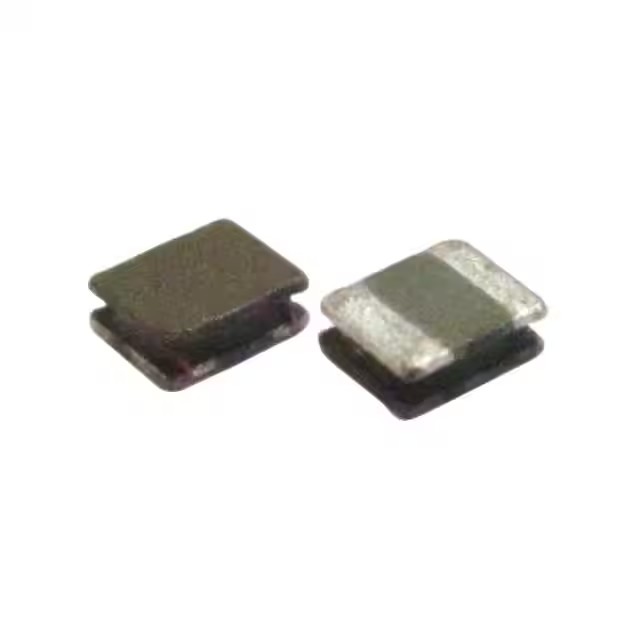

| Part Number | BWMR00252010100M00 | BWMR00252010100T00 | BWMR00252012100M00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal |
| Inductance | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±30% | ±20% |
| Current Rating (Amps) | 800 mA | 800 mA | 850 mA |
| Current - Saturation (Isat) | 900mA | 900mA | 1A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 500mOhm Max | 500mOhm Max | 480mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 12MHz | 12MHz | 14MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.047" (1.20mm) |
