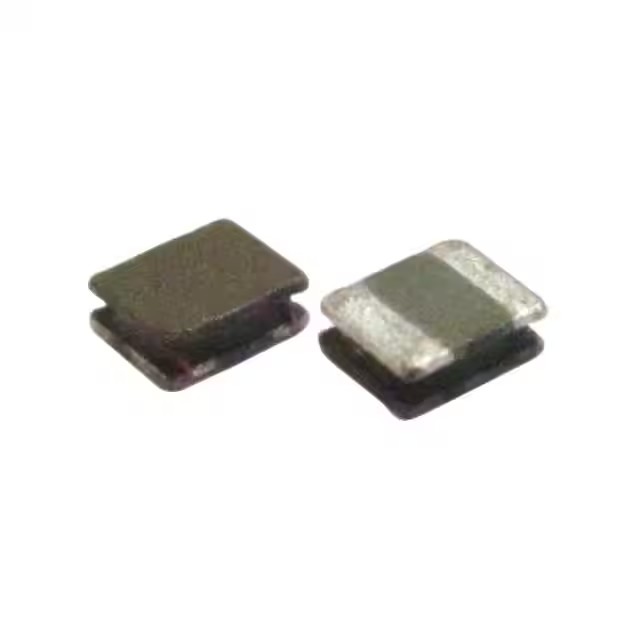

| Part Number | BWMR002016124R7M00 | BWMR002016124R7T00 | BWMR002016104R7M00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±30% | ±20% |
| Current Rating (Amps) | 1.2 A | 1.2 A | 860 mA |
| Current - Saturation (Isat) | 1.4A | 1.4A | 1A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 270mOhm Max | 270mOhm Max | 370mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 26MHz | 26MHz | 25MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 | 0806 | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) |
