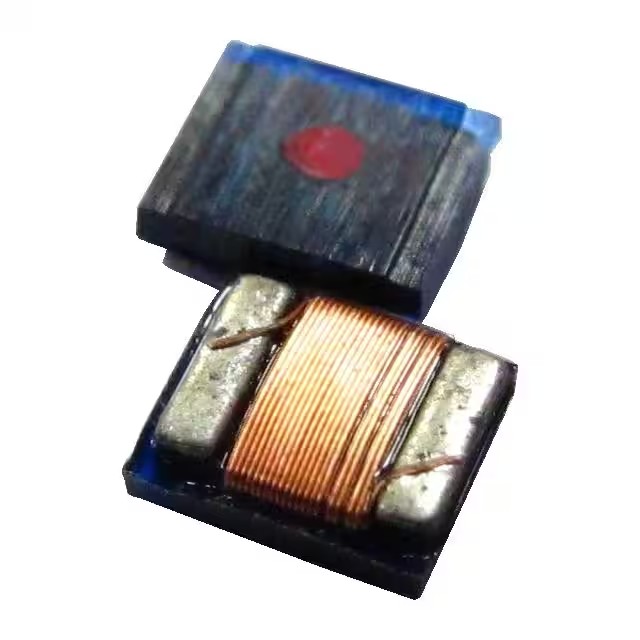

| Part Number | BWLT003731102R2J00 | BWLT003731102R2K00 | BWLT003731102R7J00 | BWLT003731108R2J00 | BWLT003731101R2J00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH | 2.7 µH | 8.2 µH | 1.2 µH |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | - | - | - | - | - |
| Current - Saturation (Isat) | 1.02A | 1.02A | 1A | 700mA | 1.3A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.02Ohm Max | 1.02Ohm Max | 1.15Ohm Max | 1.88Ohm Max | 490mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 | 1210 |
| Size / Dimension | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
