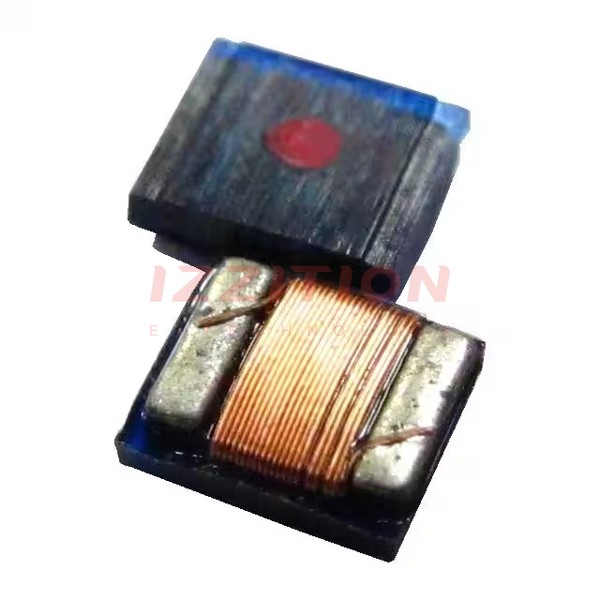

| Part Number | BWLT003731101R8K00 | BWLT003731106R8K00 | BWLT003731101R0K00 | BWLT003731101R2K00 | BWLT003731101R5K00 | BWLT003731101R8J00 |
|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.8 µH | 6.8 µH | 1 µH | 1.2 µH | 1.5 µH | 1.8 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | - | - | - | - | - | - |
| Current - Saturation (Isat) | 1.15A | 750mA | 1.5A | 1.3A | 1.2A | 1.15A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 720mOhm Max | 1.68Ohm Max | 450mOhm Max | 490mOhm Max | 680mOhm Max | 720mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 |
| Size / Dimension | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
