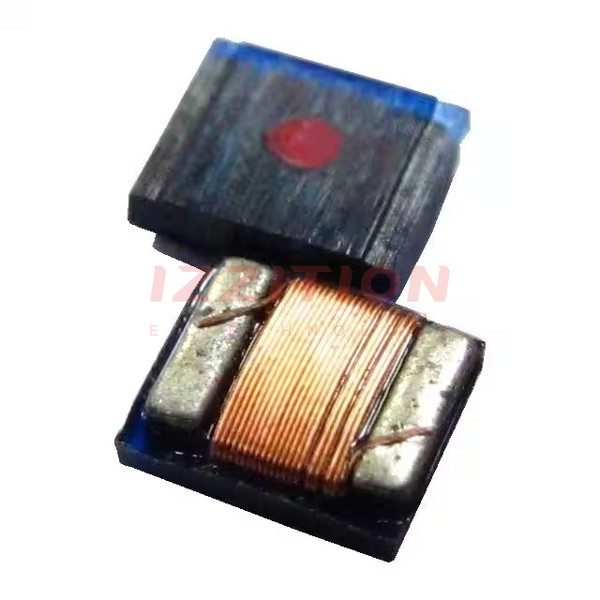

| Part Number | BWLT00373110120J00 | BWLT003731101R0J00 | BWLT00373110180J00 | BWLT00373110150J00 | BWLT00373110120K00 | BWLT00373110220J00 | BWLT00373110100J00 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 1 µH | 18 µH | 15 µH | 12 µH | 22 µH | 10 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% |
| Current Rating (Amps) | - | - | - | - | - | - | - |
| Current - Saturation (Isat) | 540mA | 1.5A | 420mA | 500mA | 540mA | 350mA | 610mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.05Ohm Max | 450mOhm Max | 4.79Ohm Max | 3.45Ohm Max | 3.05Ohm Max | 5.2Ohm Max | 2.9Ohm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 |
| Size / Dimension | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.148" L x 0.122" W (3.75mm x 3.10mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
