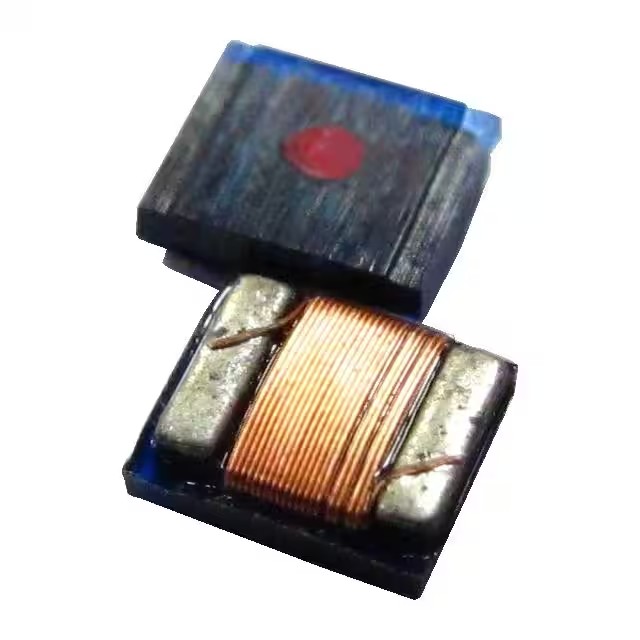

| Part Number | BWLT002418105R6K00 | BWLT002418105R6J00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±10% | ±5% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | 540mA | 540mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.14Ohm Max | 2.14Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) |
