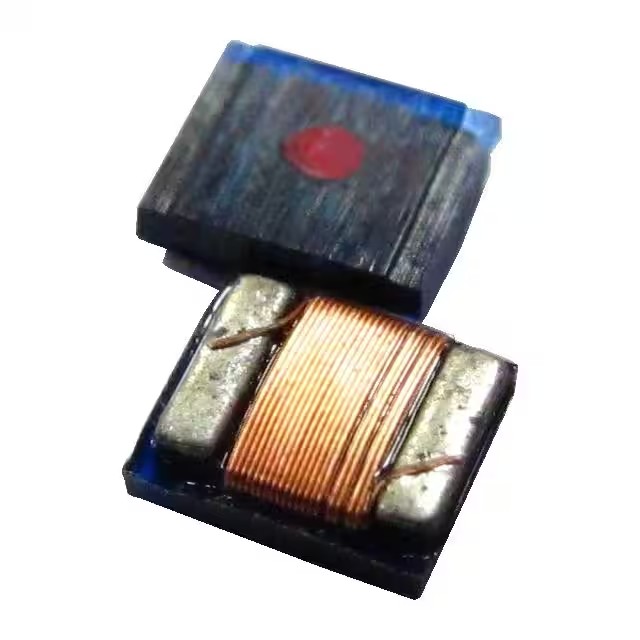

| Part Number | BWLT002418101R0K00 | BWLT002418101R2K00 | BWLT002418101R8K00 | BWLT002418101R5K00 | BWLT00241810100K00 | BWLT00241810120K00 | BWLT00241810150K00 | BWLT00241810180K00 | BWLT002418101R0J00 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.2 µH | 1.8 µH | 1.5 µH | 10 µH | 12 µH | 15 µH | 18 µH | 1 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | - | - | - | - | - | - | - | - | - |
| Current - Saturation (Isat) | 720mA | 690mA | 650mA | 670mA | 450mA | 400mA | 380mA | 300mA | 720mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 870mOhm Max | 970mOhm Max | 1.15Ohm Max | 1.1Ohm Max | 2.7Ohm Max | 4.2Ohm Max | 4.8Ohm Max | 5.74Ohm Max | 870mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
