Please send RFQ , we will respond immediately.

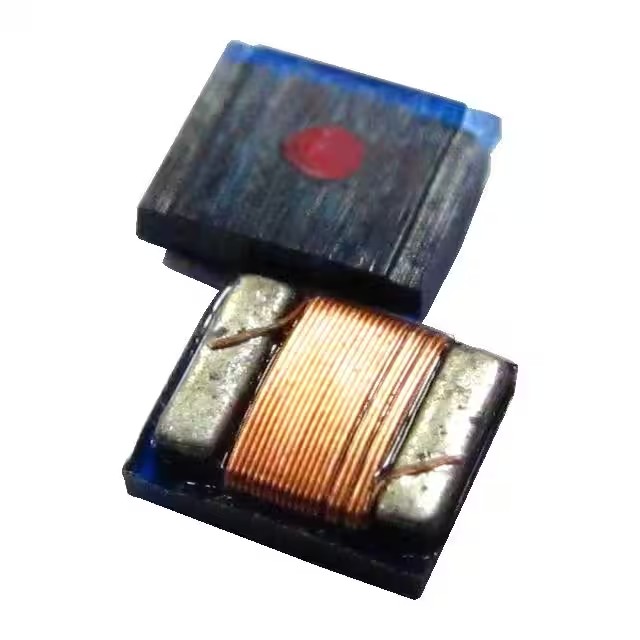

| Part Number | BWLT00241810100K00 | BWLT002418101R0K00 | BWLT00241810180K00 | BWLT00241810150K00 | BWLT00241810120K00 | BWLT00241810100J00 |
|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH | 18 µH | 15 µH | 12 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | - | - | - | - | - | - |
| Current - Saturation (Isat) | 450mA | 720mA | 300mA | 380mA | 400mA | 450mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.7Ohm Max | 870mOhm Max | 5.74Ohm Max | 4.8Ohm Max | 4.2Ohm Max | 2.7Ohm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
