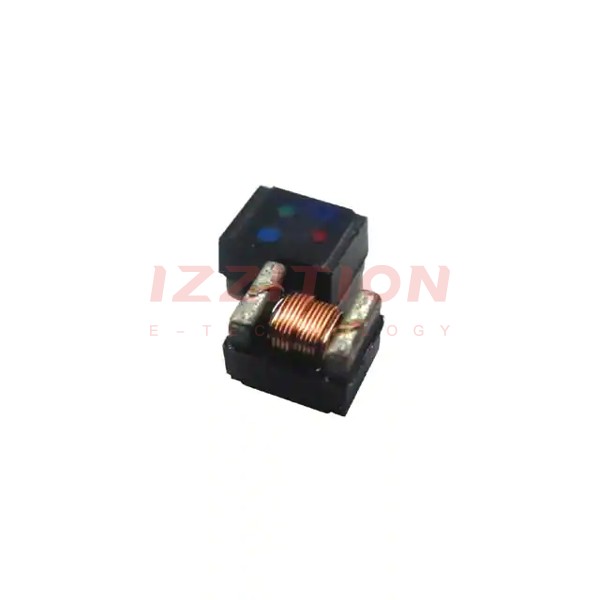

| Part Number | BWLS001611095R6K00 | BWLS001611095R6J00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±10% | ±5% |
| Current Rating (Amps) | 400 mA | 400 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.6Ohm Max | 2.6Ohm Max |
| Q @ Freq | 18 @ 7.9MHz | 18 @ 7.9MHz |
| Frequency - Self Resonant | 65MHz | 65MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 |
| Size / Dimension | 0.063" L x 0.043" W (1.60mm x 1.10mm) | 0.063" L x 0.043" W (1.60mm x 1.10mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) |
