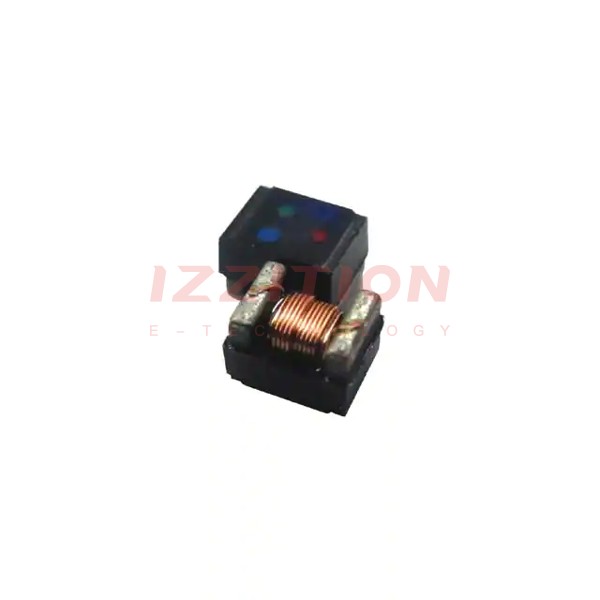

| Part Number | BWLS0010060620NJ00 | BWLS0010060620NK00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 20 nH | 20 nH |
| Tolerance | ±5% | ±10% |
| Current Rating (Amps) | 1.6 A | 1.6 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 50mOhm Max |
| Q @ Freq | 10 @ 100MHz | 10 @ 100MHz |
| Frequency - Self Resonant | 2.6GHz | 2.6GHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 |
| Size / Dimension | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.040" L x 0.022" W (1.02mm x 0.55mm) |
| Height - Seated (Max) | 0.026" (0.66mm) | 0.026" (0.66mm) |
