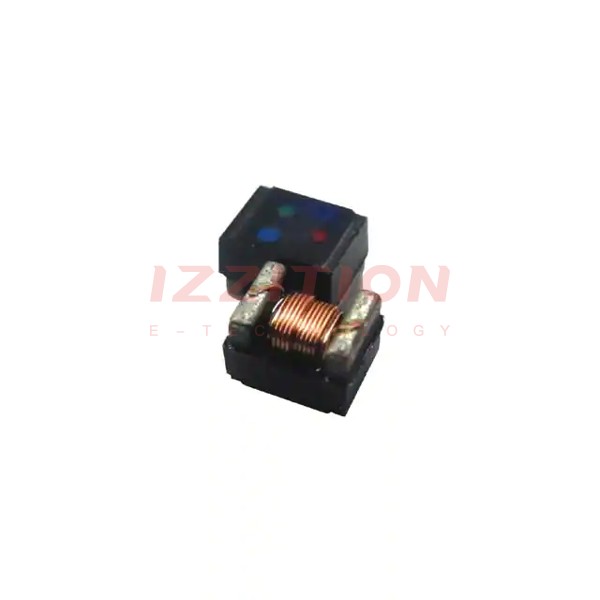

| Part Number | BWLS0006040443NJ00 | BWLS0006040443NK00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 43 nH | 43 nH |
| Tolerance | ±5% | ±10% |
| Current Rating (Amps) | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 240mOhm Max | 240mOhm Max |
| Q @ Freq | 7 @ 100MHz | 7 @ 100MHz |
| Frequency - Self Resonant | 2.2GHz | 2.2GHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 |
| Size / Dimension | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.023" L x 0.018" W (0.58mm x 0.46mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) |
