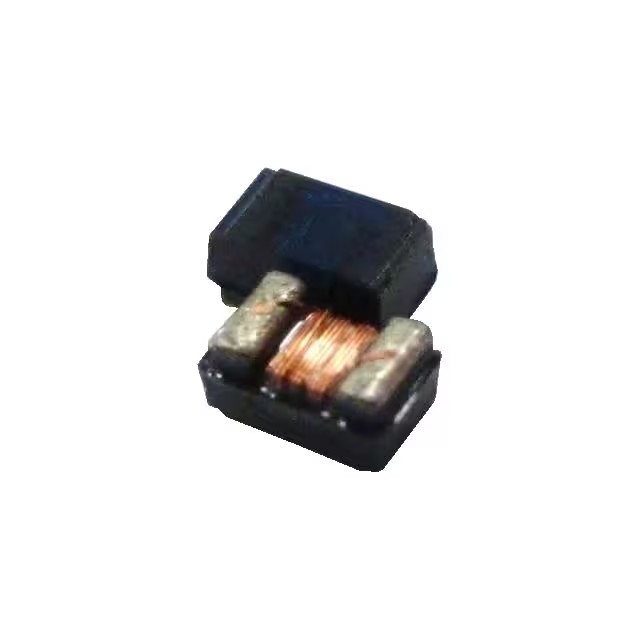

| Part Number | BWLM0018100985NJ00 | BWLM0018100915NJ00 | BWLM0018100955NJ00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 85 nH | 15 nH | 55 nH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 1.4 A | 2.2 A | 1.5 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 25mOhm Max | 45mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 1.38GHz | 2GHz | 1.6GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
