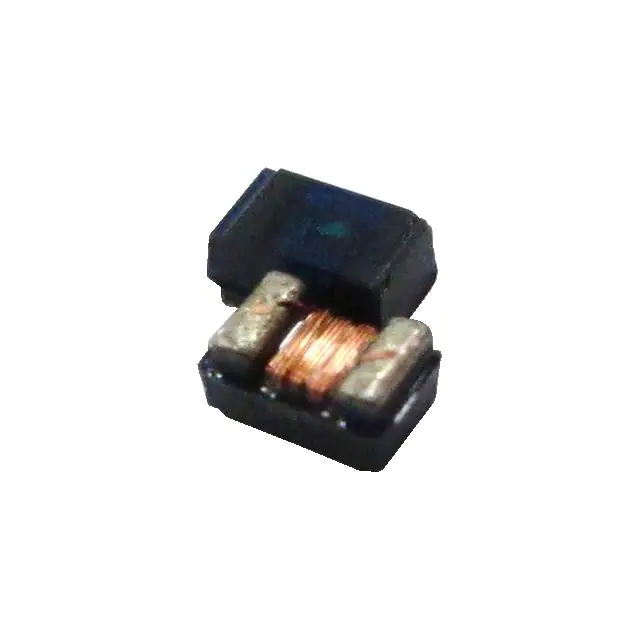

| Part Number | BWLD003025228R2K00 | BWLD003025222R2K00 | BWLD003025228R2J00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 µH | 2.2 µH | 8.2 µH |
| Tolerance | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 650 mA | 950 mA | 650 mA |
| Current - Saturation (Isat) | 500mA | 950mA | 500mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 395mOhm Max | 155mOhm Max | 395mOhm Max |
| Q @ Freq | 20 @ 2.5MHz | 21 @ 2.5MHz | 20 @ 2.5MHz |
| Frequency - Self Resonant | 24MHz | 75MHz | 24MHz |
| Ratings | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz | 2.5 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 |
| Size / Dimension | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.118" L x 0.098" W (2.99mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
