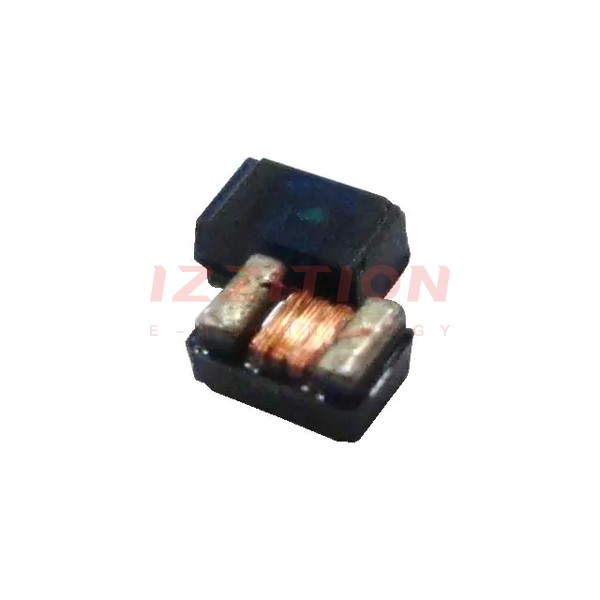

| Part Number | BWLD003025221R5J00 | BWLD003025221R9J00 | BWLD003025221R5K00 | BWLD003025221R3J00 |
|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.9 µH | 1.5 µH | 1.3 µH |
| Tolerance | ±5% | ±5% | ±10% | ±5% |
| Current Rating (Amps) | 1 A | 1 A | 1 A | 1.1 A |
| Current - Saturation (Isat) | 1.1A | 1A | 1.1A | 1.2A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 125mOhm Max | 140mOhm Max | 125mOhm Max | 110mOhm Max |
| Q @ Freq | 22 @ 2.5MHz | 22 @ 2.5MHz | 22 @ 2.5MHz | 24 @ 2.5MHz |
| Frequency - Self Resonant | 210MHz | 165MHz | 210MHz | 220MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz | 2.5 MHz | 2.5 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 |
| Size / Dimension | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.118" L x 0.098" W (2.99mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
