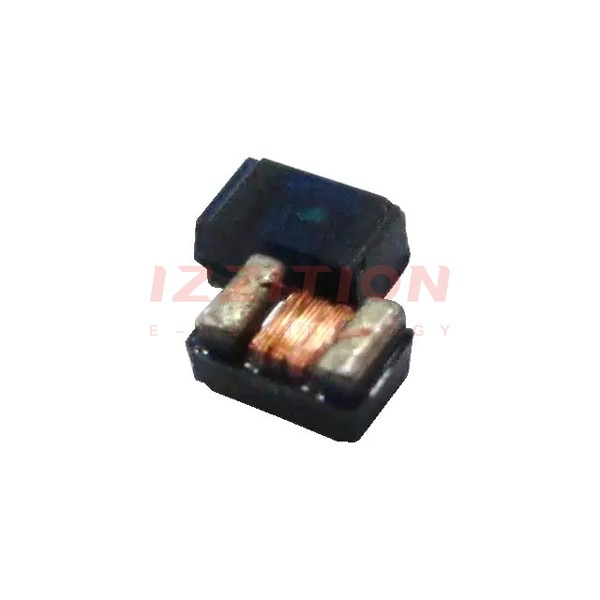

| Part Number | BWLD002417156R8M00 | BWLD002417156R8K00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±10% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | 290mA | 290mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 750mOhm | 750mOhm |
| Q @ Freq | 18 @ 7.96MHz | 18 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz | 60MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Height - Seated (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) |
