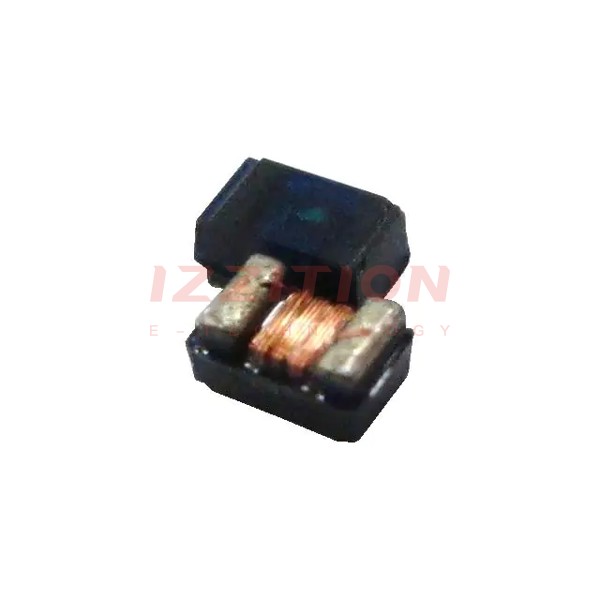

| Part Number | BWLD00241715220M00 | BWLD00241715220K00 |
|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±20% | ±10% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | 190mA | 190mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.95Ohm | 1.95Ohm |
| Q @ Freq | 18 @ 2.52MHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 17MHz | 17MHz |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Height - Seated (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) |
