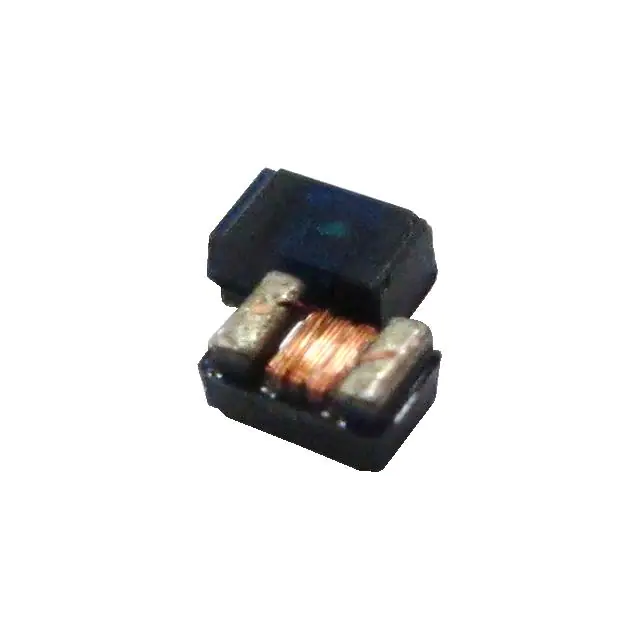

| Part Number | BWLD00241715100K00 | BWLD00241715101K00 | BWLD00241715100M00 | BWLD002417151R0K00 | BWLD00241715150K00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 10 µH | 1 µH | 15 µH |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Current Rating (Amps) | - | - | - | - | - |
| Current - Saturation (Isat) | 290mA | 70mA | 290mA | 800mA | 230mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 900mOhm | 9Ohm | 900mOhm | 100mOhm | 1.6Ohm |
| Q @ Freq | 18 @ 2.52MHz | 12 @ 1MHz | 18 @ 2.52MHz | 18 @ 7.96MHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 25MHz | 9MHz | 25MHz | 100MHz | 25MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 1 MHz | 2.52 MHz | 7.96 MHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Height - Seated (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.060" (1.52mm) | 0.060" (1.52mm) |
