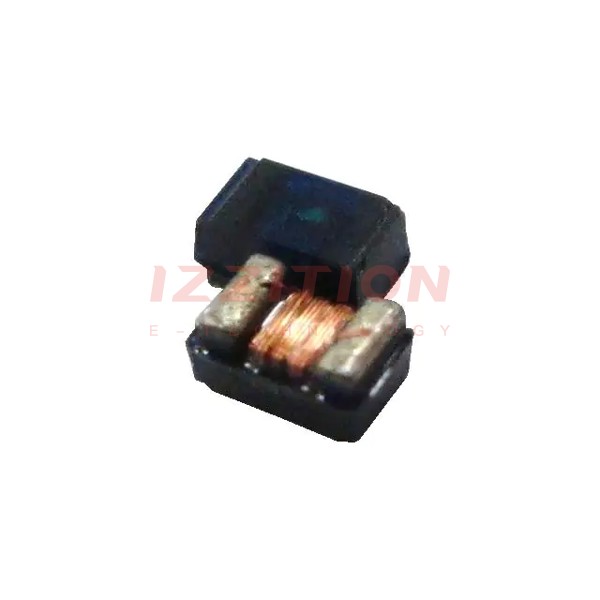

| Part Number | BWLD001810106R8J00 | BWLD001810106R8M00 | BWLD001810106R8K00 |
|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±5% | ±20% | ±10% |
| Current Rating (Amps) | - | - | - |
| Current - Saturation (Isat) | 340mA | 340mA | 340mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.5Ohm | 1.5Ohm | 1.5Ohm |
| Q @ Freq | 16 @ 7.96MHz | 16 @ 7.96MHz | 16 @ 7.96MHz |
| Frequency - Self Resonant | 43MHz | 43MHz | 43MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
