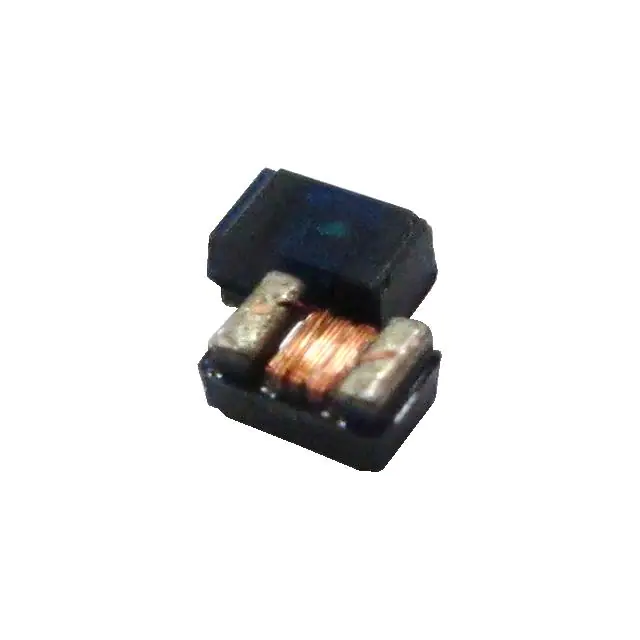

| Part Number | BWLD001810101R0J00 | BWLD001810101R0K00 | BWLD001810101R0M00 | BWLD00181010100J00 | BWLD00181010150J00 |
|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics | Chilisin Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±5% | ±10% | ±20% | ±5% | ±5% |
| Current Rating (Amps) | - | - | - | - | - |
| Current - Saturation (Isat) | 700mA | 700mA | 700mA | 280mA | 240mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 320mOhm | 320mOhm | 320mOhm | 1.85Ohm | 2.6Ohm |
| Q @ Freq | 16 @ 7.96MHz | 16 @ 7.96MHz | 16 @ 7.96MHz | 14 @ 7.96MHz | 14 @ 7.96MHz |
| Frequency - Self Resonant | 390MHz | 390MHz | 390MHz | 36MHz | 29MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
