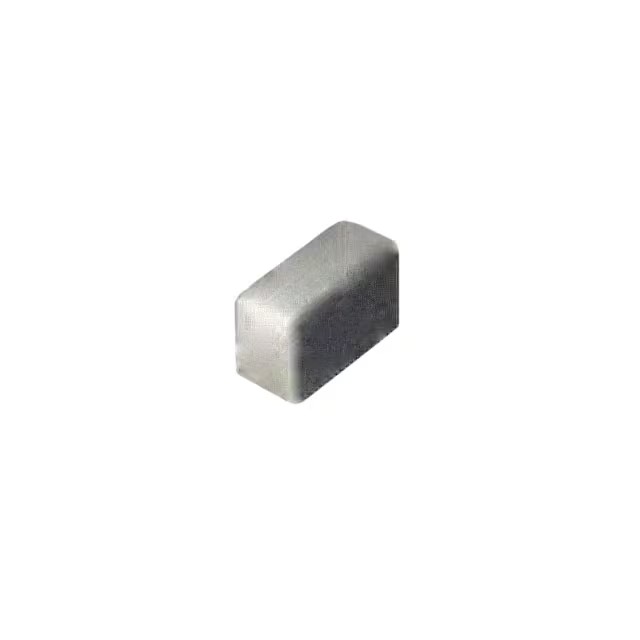

| Part Number | BSPQ000603042N5B00 | BSPQ000603042N7B00 | BSPQ000603042N6B00 | BSPQ000603042N9B00 | BSPQ000603041N5B00 | BSPQ000603042N0B00 | BSPQ000603042N2B00 | BSPQ000603042N3B00 | BSPQ000603042N4B00 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Chilisin Electronics | PulseLarsen Antennas | Chilisin Electronics | Chilisin Electronics | PulseLarsen Antennas | PulseLarsen Antennas | PulseLarsen Antennas | Chilisin Electronics | PulseLarsen Antennas |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 2.5 nH | 2.7 nH | 2.6 nH | 2.9 nH | 1.5 nH | 2 nH | 2.2 nH | 2.3 nH | 2.4 nH |
| Tolerance | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 600 mA | 600 mA | 600 mA | 600 mA | 1 A | 600 mA | 600 mA | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm Max | 120mOhm Max | 120mOhm Max | 120mOhm Max | 50mOhm Max | 120mOhm Max | 120mOhm Max | 120mOhm Max | 120mOhm Max |
| Q @ Freq | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz |
| Frequency - Self Resonant | 9GHz | 9GHz | 9GHz | 8GHz | 12GHz | 9GHz | 9GHz | 9GHz | 9GHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) | 0.017" (0.43mm) |
